Base Moulding 6" - 9

Base Moulding 6" - 9

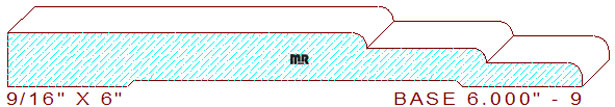

This three step base moulding 6" - 9 measures 6.000" wide by .562" thickness. The cascading profile is comprised of a 3-3/4" wide horizontal line with a 5/32" radius drop, connected to a 1-1/4" wide by 5/32" deep radius step in the center, joined to a 1" wide line segment also with a 5/32" eased edge leaving a 1/4" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. We offer a small cluster of these type of stepped designs in the same width for your review and consideration, baseboard 6.000" - 44, 47, 54, 69, 85, 101, 110, and base molding 6.000" - 144.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .563" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
