Base Moulding 6" - 94

Base Moulding 6" - 94

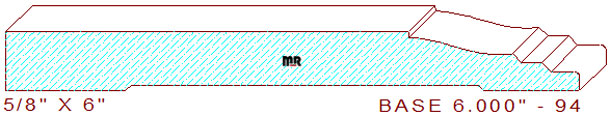

This popular baseboard moulding 6" - 94 measures 6.000' wide by .625" thickness, allowing the pattern to be milled from four quarter lumber. The beautifully designed profile is composed of a 3-7/32" wide straight line on the left with a 1/16" vertical step in elevation in the middle, connected to a shallow two tangent radius ogee with a 3/32" deep beveled edge, joined to a 7/32" wide line segment with another 3/32" chamfer that transitions into a 5/16" wide line with a 1/16" eased edge on the right side of the pattern. This professionally drafted cad dxf file contains two high precision template designs to create cutters for this gorgeous detail, one for cutting the entire width of the pattern, and the other for milling just the profile section of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .594" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
