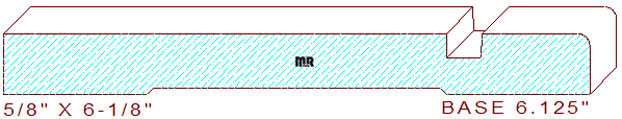

This Channel Base Moulding 6-1/8" measures 6.125" wide by 625" thickness, with a .281" depth of cut on the top horizontal set of knives. Search our backout category for an appropriate relief cut for this pattern, we have many workable options to choose from. You may want to alter the search parameters by a quarter of an inch or so to find a suitable size design to mill this pattern.
The dadoed profile is comprised of a 4-5/8" wide straight line, connected to a 3/8" wide by 1/4" deep dado, joined to a 1-1/8" wide horizontal fillet with a 1/8" radius positioned at the top of the detail.
Download all our free moulding knife dxf profiles, see how easy the services we provide can increase productivity and reduce production cost. We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your beautiful home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
