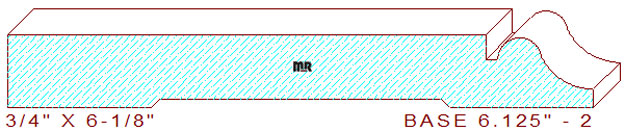

This Cyma Reversa Base Moulding 6-1/8" - 2 measures 6.125" wide by .750" thickness, with a .563" depth of cut on the top horizontal set of cutters. Search our backout category for an appropriate relief cut for this pattern, we have many workable options to choose from. You may want to alter the search parameters by a quarter of an inch or so to find a suitable size design to mill this pattern.
The stylish profile is comprised of a 5" wide by 1/4" deep stepped fillet, attached to a 1/8" wide sunken fillet that transitions into a deep sloping cyma reversa at the top of the pattern.
Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the search parameters. Let us assist you in shaping your home’s astonishing architectural décor, one attractive moulding profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
