Base Moulding 6-3/16" - 1

Base Moulding 6-3/16" - 1

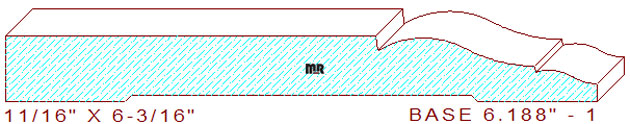

This beautiful base moulding 6-3/16" - 1 measures 6.188" wide by .687" thickness. The lovely profile is comprised of a 3-7/8" wide by 5/32" deep stepped line connected to two different sized cyma reversa with a 1/16" tall vertical fillet dividing the two entities, leaving a 3/16" thickness dimension on the thin side of the pattern. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling designs to help match your creative style.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.188" / Depth of Cut = .500" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
