Baseboard 6-1/4" - 21
Baseboard 6-1/4" - 21

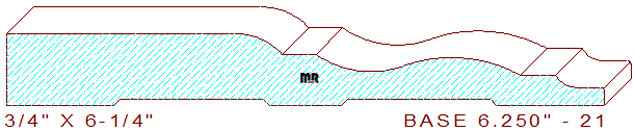

This attractive 6-1/4" - 21 base moulding measures 6.250" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The pattern is composed of a 2-7/8" flat line segment with an 11/16" rolled inside edge on the top center. Attached to a 23/64" wide fillet and a shallow two tangent radii cyma recta, with a 3/8" broad flat line and a 1/2" cong'e derived from a 1/4" cove, with a 3/64" eased edge on the right side of the design. The lovely profile serves two purposes, one as a base and the other as a crown or backer for a crown mould.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.250
Depth of Cut: 0.727
Bottom Cutter Head
Width: 6.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$435.00
$407.00
Total:
$842.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$463.00
$435.00
Total:
$898.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$505.00
$477.00
Total:
$982.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
