Base Moulding 6-1/4" - 7

Base Moulding 6-1/4" - 7

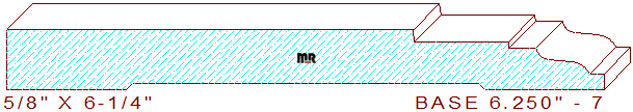

This delightfully beautiful baseboard moulding 6-1/4" - 7 measures 6.250" wide by .625" thickness, enabling the pattern to be machined out of four quarter lumber. The attractive profile is comprised of a 4-1/4" flat line on the top left center, joined to three tiered lines that connects to a shallow two tangent radius cyma recta with a 5/32" wide fillet on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.250" / Depth of Cut = .460" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
