Base Moulding 6-1/4" - 9

Base Moulding 6-1/4" - 9

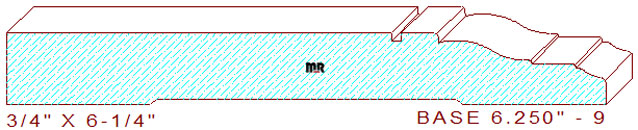

This custom baseboard moulding 6-1/4" - 9 measures 6.250" wide by .750" thickness, allowing the detail to be machined out of four quarter lumber. The attractive profile is comprised of a 4-1/2" wide horizontal line on the upper left side, attached to a 3/32" wide dado that joins to a 25/64" wide raised fillet with 3/64" eased edges, connected to a two tangent radius cyma reversa with a 3/64" eased edge that merges with a 29/64" wide line segment and a small ogee on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.250" / Depth of Cut = .625" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
