Baseboard 6-3/8"
Baseboard 6-3/8"

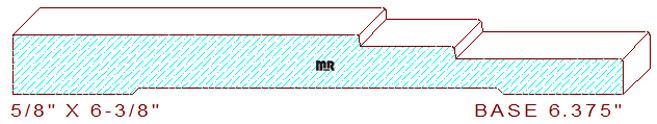

This stepped 6-3/8" base moulding measures 6.375" wide by .625" thickness. The profile portion is 2.750" wide and consists of two 1/8" deep stepped fillets on three different elevations. The widths of the flat sections are as follows, 3-5/8" wide at the thickest portion, 1" comprehensive on the center fillet and 1-3/4" wide on the thinner section, all steps have a .040" eased edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.375
Depth of Cut: 0.446
Bottom Cutter Head
Width: 6.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$413.50
$413.50
Total:
$827.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$442.00
$442.00
Total:
$884.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$484.75
$484.75
Total:
$969.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
