Base Moulding 6-3/8" - 1

Base Moulding 6-3/8" - 1

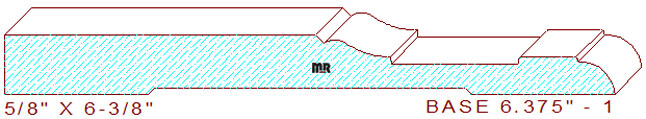

This Innovative Base Moulding 6-3/8" - 1 measures 6.375" wide by .625" thickness, with a .625" depth of cut on the top horizontal set of knives. Caution; the cutters will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial wooden bed plate be used for these types of milling operations. Search our backout category for an appropriate relief cut for this detail, you may want to change the backout search parameters by a quarter of an inch or so to find a suitable size to mill this pattern, we have many options to choose from.

The creative design is comprised of a 3-1/4" wide straight line with a chamfered edge that transitions into a small cyma reversa, attached to a 1-3/8" wide sunk fillet, joined to a 5/8" wide raised fillet with a 3/8" radius quarter round circle positioned at the top of the pattern. We have a couple of casings that will match effectively with this pattern, Case 4.000" - 74 and Case 4.250 - 17 there are other options as well. Just alter the search parameters in the boxes provided to view any width size desired.

Utilize any of our profiles to create a stylish custom moulding catalog for your millwork company, offer more eye-catching patterns to your clients, while reducing production cost spent on moulding knife design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
