Baseboard 6-3/8" - 3
Baseboard 6-3/8" - 3

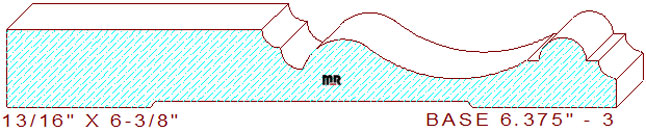

This exquisite 6-3/8" - 3 base moulding measures 6.375" wide by .812" thickness, permitting the detail to be machined out of four-quarter lumber. The elegant profile is composed of a 2-43/64" broad flat line segment on the left, attached to a 3/16" cove that transitions to another down-sloping 7/32" cavetto, joined to a graceful 7/16" radius arc that's tangent to a 1-1/2" concave semicircle forming the cyma reversa in the center, connected to a 1/2" wide half circle flanked by 1/8" line segments with a 3/16" cove and a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.375
Depth of Cut: 0.681
Bottom Cutter Head
Width: 6.375
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$442.00
Not Needed
Total:
$442.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$470.50
Not Needed
Total:
$470.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$513.25
Not Needed
Total:
$513.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
