Baseboard 6-1/2" - 14

Baseboard 6-1/2" - 14

Baseboard 6-1/2" - 14

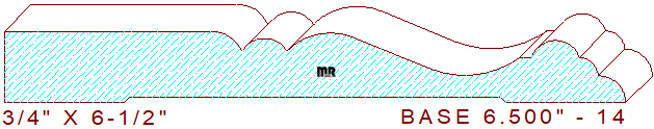

This elegant 6-1/2" - 14 base moulding measures 6.500" wide by .750" thickness enabling the detail to be milled from four-quarter lumber. The stylish profile is composed of a 2-1/2" broad horizontal line with a 3/8" radius arc on the left side, connected to a 15/32" wide recessed half round bead that joins to a graceful two tangent radius french curve with a 1/8" wide line segment in the center, attached to a 1/2" wide half circle with two cascading quarter round beads on the right side of the pattern.

Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these milling operations.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$405.50
Total:
$840.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$463.50
$434.50
Total:
$898.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$492.50
$463.50
Total:
$956.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
