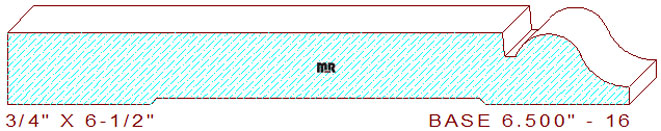

This Lovely Base Moulding 6-1/2" - 16 measures 6.500" wide by .750" thickness with a .563" depth of cut on the top horizontal set of moulding cutters. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The stylish profile is comprised of a 5-3/16" wide by 1/4" deep stepped fillet, attached to a 1/8" wide sunk fillet that transitions into a recessed cyma reversa consisting of a 3/8" radius arc, tangent off of a 17/32" radius cove, leaving a 3/16" thickness dimension at the top of the pattern.
Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the width search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
