Moulding Knives by Mirror Reflections

Moulding Knives
by Mirror Reflections
(801)451-5987

Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 6-1/2" - 34

Baseboard 6-1/2" - 34

Baseboard 6-1/2" - 34

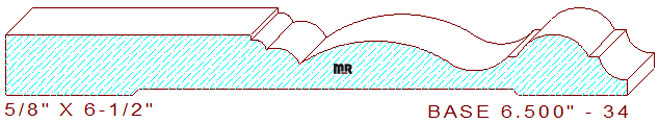

This exceptional 6-1/2" - 34 base moulding measures 6.500" wide by .625" thickness. The exquisite profile is comprised of a 2-9/16" broad flat line with a 1/16" vertical step, attached to two different sized quarter round arcs on the top left center. They transition into an elegantly shallow two tangent radius cyma reversa, joined to a 3/4" wide half circle flanked by small horizontal lines with a 9/32" cove, leaving a 5/32" thickness dimension on the design's right edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.469
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$405.50
Total:
$811.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$463.50
$463.50
Total:
$927.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
