Baseboard 6-1/2" - 37
Baseboard 6-1/2" - 37

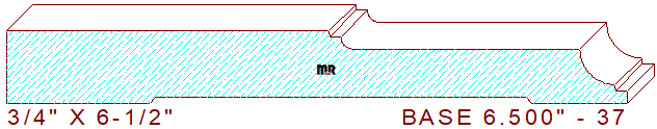

This lovely 6-1/2" - 37 base moulding measures 6.500' wide by .750" thickness, authorizing the use of four-quarter lumber for milling. The beautiful profile is composed of a 3-3/8" broad flat line segment on the top left, connected to a 1/8" wide by 1/16" deep perpendicular notch, joined to a 2-3/8" wide cong'e derived from a 1/8" radius cavetto, attached to a 3/8" cove and another 1/8" wide by 1/16" deep notch leaving a 1/8" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.625
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$420.00
$420.00
Total:
$840.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$449.00
$449.00
Total:
$898.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$492.50
$492.50
Total:
$985.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
