Base Moulding 6-9/16" - 1

Base Moulding 6-9/16" - 1

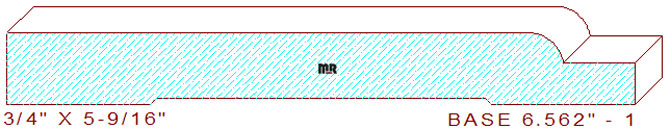

This Contemporary Base Moulding 6-9/16" - 1 measures 6.562" wide by .750" thickness, with a .313" depth of cut on the top horizontal set of cutters. Search our backout category for a suitable relief cut for this detail, we have a few options to choose from. You may have to change the backout search parameters by an eighth of an inch or more to find a suitable size pattern to coincide with this design.

The universal profile is comprised of a 5-13/16" wide straight fillet with a 3/8" radius edge, connected to a 3/4" wide sink fillet, leaving a 7/16" thickness dimension on the top edge of the detail. This pattern was purposely designed for creating a two-piece base moulding buildup, search our base caps or panel mouldings for a innovative profile that will enhance the décor of that special room in your fascinating home.

Take advantage of our specialized design skills, over thirty years of experience in wood moulding manufacturing, superior designed acrylic templates, and exceptional quality custom moulding knives.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
