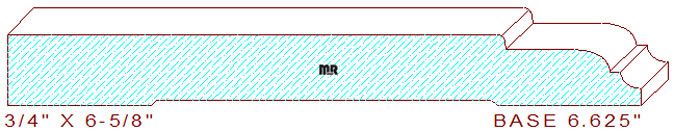

This lovely base moulding measures 6-5/8' wide by 3/4" thickness, the profile section dimension is just over 1-13/32" wide, it consist of a stepped fillet with a 3/32" radius on top that transitions onto a 1-3/32" wide radius edge fillet with a small cavetto attached. We have created two layout designs of this profile, one is intended for a five spindle moulder with a single top cutter head, the other pattern design was created for a moulder that has two top horizontal spindles, the first top cutter head would mill to the finish thickness dimension, the second top cutter head will mill the detail only, this practice will save you a substantial amount of time and money on moulding knife steel and labor.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
