Baseboard 6-3/4" - 10
Baseboard 6-3/4" - 10

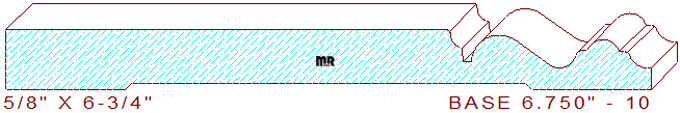

This old-world 6-3/4" - 10 base moulding measures 6.750" wide by .625" thickness, allowing the detail to be machined from four-quarter lumber. The historical profile is one of the more popular styles of baseboards. It is composed of a 4-21/32" broad flat line on the left, connected to a 9/64" cove that transitions into a 3/32" wide sunk fillet, joined to two semicircular arcs connected by a tangent angled line in the center, merged with an 11/32" wide half round bead flanked by tiny lines segments with 1/16" eased edges and a 13/64" cove on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.750
Depth of Cut: 0.401
Bottom Cutter Head
Width: 6.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
