Baseboard 6-3/4" - 15
Baseboard 6-3/4" - 15

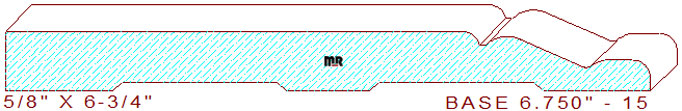

This beautiful 6-3/4" - 15 base moulding measure 6.750" width by .625" thickness permitting the use of a seven-inch wide blank of four-quarter lumber for milling on an industrial molder. The beautiful profile comprises a 5-31/32" broad flat line with a 3/16" rolled inner edge on the top center. The round-over connects to a 1/16" wide sunk fillet merged with a downsloping two tangent radius s-shaped curvature that transitions into a raised fillet with a 3/16" eased edge on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.750
Depth of Cut: 0.625
Bottom Cutter Head
Width: 6.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$433.00
$433.00
Total:
$866.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$463.00
$463.00
Total:
$926.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$508.00
$508.00
Total:
$1016.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
