Base Moulding 6-3/4" - 3

Base Moulding 6-3/4" - 3

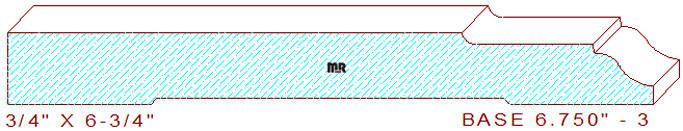

This Traditional Base Moulding 6-3/4" - 3 measures 6.750" wide by .750" thickness, with a .563" depth of cut on the top horizontal set of knives. Search our backout category for an appropriate relief cut for this detail, we have a few options to choose from. You may want to change the backout search parameters by a quarter of an inch or more to find a more suitable option.

The classic design is comprised of a 4-3/4" wide straight line, connected to a 1-3/8" wide congee with a 5/32" radius, joined to two tangent radiuses that create a ogee/cyma reversa positioned at the top portion of the pattern. Try one of our creative base shoe or plant on moulding designs on the bottom of the profile, make it irresistibly compelling by simply changing the search sizes to find a profile that compliments this classic baseboard pattern.

If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
