Base Moulding 6-3/4" - 4

Base Moulding 6-3/4" - 4

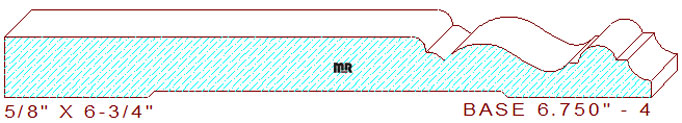

This Colonial Base Moulding 6-3/4" - 4 measures 6.750" wide by .625" thickness, with a .453" depth of cut on the top horizontal set of knives. Search our backout category for an appropriate relief cut for this detail, we have a few options to choose from. You may want to change the backout search parameters by a quarter of an inch or more to find a more suitable backout option.

The beautiful profile is comprised of a 4-25/64" wide straight line attached to a 5/32" arc, connected to a small quarter round circle that transitions into a cyma reversa, joined to a half round circle, flanked by small fillets with a 1/4" radius cavetto positioned at the top of the pattern.

Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of moulder set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
