Base Moulding 6-3/4" - 5

Base Moulding 6-3/4" - 5

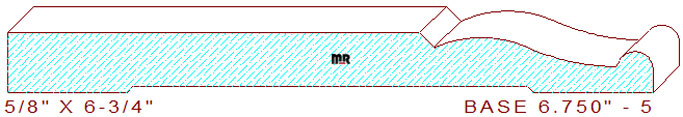

This Elegant Base Moulding 6-3/4" - 5 measures 6.750" wide by .625" thickness, the profile is comprised of a 4-5/16" wide fillet that transitions into a 5/32" deep chamfer that connects to a cyma reversa with a 3/16" radius half round bead attached at the top of the pattern. There are two layout designs in the dxf file, one is designed for a five spindle moulder while the other is for a six head moulder with two top horizontal spindles which would mill just the profile portion of the pattern.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
