Base Moulding 6-3/4" - 6

Base Moulding 6-3/4" - 6

This Average Base Moulding 6-3/4" - 6 measures 6.750" wide by .750" thickness, with a .625" depth of cut on the top horizontal set of knives. Search our backout category for a proper relief cut for this detail, we have a few options to choose from. You may want to change the backout search parameters by a quarter of an inch or more to find a suitable backout/relief cut option.

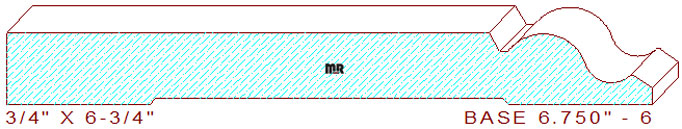

The pattern is comprised of a 5-3/64" long straight line, connected to a chamfer with a 3/32" wide sunk fillet, that transitions into a deep sloping cyma reversa with a 1/4" wide chamfer located at the top of the profile. Try one of our fancy base shoe or plant on moulding designs on the bottom that will dramatically enhance this profile. Make it irresistibly compelling by simply changing the search sizes to find a detail that compliments this standard baseboard pattern.

We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to obtain the correct width size of knife steel before you start knife grinding procedures and moulding production.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
