Base Moulding 6-3/4" - 7

Base Moulding 6-3/4" - 7

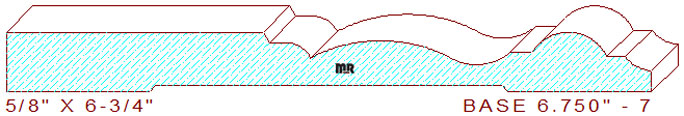

This Innovative Base Moulding 6-3/4" - 7 measures 6.750" wide by .625" thickness, with a .567" depth of cut on the top horizontal set of knives. Search our backout category for an appropriate relief cut for this detail, we have a few options to choose from. You may want to change the backout search parameters by a quarter of an inch or more to find a more suitable option.

The stylish design is comprised of a 2-11/16" wide straight line with a chamfered edge, connected to a 7/16" wide radius edge fillet, joined to an elongated cyma reversa attached to a half round circle flanked by small fillets, with a 3/8" radius cavetto positioned at the top of the pattern.

Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge, and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
