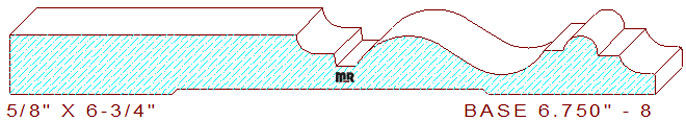

This Colonial Base Moulding 6-3/4" - 8 measures 6.750" wide by .625" thickness, with a .570" depth of cut on the top horizontal set of knives. Search our backout category for a proper relief cut for this pattern, we have a few options to choose from. You may want to alter the backout search parameters by a quarter of an inch or more to find a suitable relief cut option.
The old world profile is comprised of a 3" wide straight line connected to a small congee, attached to a vertical and sunk fillet that transitions into a wide cyma reversa, joined to a 3/8" wide half round circle flanked by small fillets, with a 17/64" radius cove at the top of the pattern.
With over 15,000 moulding profiles in our search by size catalog, there is something for everyone’s architectural style. Utilize our Moulding Manufacturers Map listed by states to help you locate a local mill in your area to manufacture this creative baseboard profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
