Base Moulding 6-3/4" - 9

Base Moulding 6-3/4" - 9

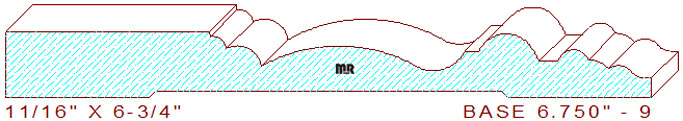

This Ornate Base Moulding 6-3/4" - 9 measures 6.750" wide by .687" thickness, with a .484" depth of cut on the top horizontal set of knives. Search our backout category for a suitable relief cut for this pattern, we have a few options to choose from. You may want to change the backout search parameters by a quarter of an inch or more to find a more suitable backout option.

The decorative profile is comprised of a 2-1/8" wide by 1/16" deep stepped fillet, attached to a series of creative geometrical shapes including, quarter round circles, convex arcs, thumbnail shapes, sunk fillets, half round circle, and a small cyma reversa located at the top of the pattern.

Together we help create some of the most unique and compelling architectural moulding knife designs in the woodworking industry. We have thousands of moulding profile designs that will reflect the splendor of architectural décor in any room of your marvelous home, find yours now.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
