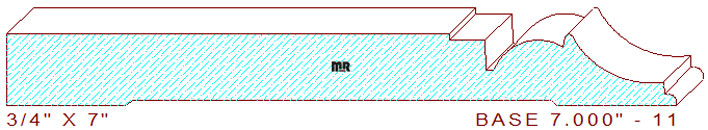

This Ornate Base Moulding 7" - 11 measures 7.000" wide by .750" thickness with a .750" depth of cut on the top horizontal set of moulding knives. Caution, the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The innovative profile portion of the design measures 2-3/4" wide, it is made up of stepped fillets, quirks, quarter round beads, a cove, and a very small quarter rounded bead at the top of the pattern. May we suggest using Base 3.000" as a base shoe detail for this moulding design.
Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five degree back clearance angle, will rough grind a set of high-speed steel moulding knives in a very minimal amount of time, purchase one today with your template order.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
