Baseboard 7" - 14
Baseboard 7" - 14

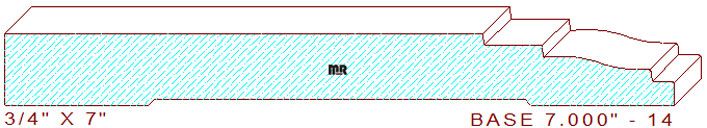

This attractive 7" - 14 base moulding measures 7.000" wide by .750" thickness. The profile comprises a 5" wide horizontal fillet connected to a stepped fillet that is attached to a cyma reversa consisting of two tangent radiuses with a 1/4" wide by 1/8" deep notched fillet positioned on top, leaving 1/4" thickness on the side edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.687
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$477.00
$446.00
Total:
$923.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$508.00
$477.00
Total:
$985.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$554.50
$523.50
Total:
$1078.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
