Base Moulding 7" - 16

Base Moulding 7" - 16

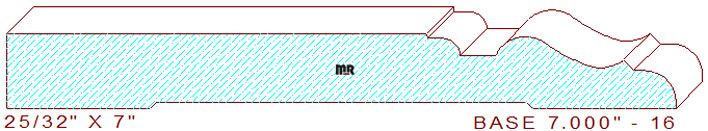

This Base Moulding 7" - 16 measures 7.000" wide by .781" thickness, the profile is comprised of a 4.393" wide horizontal fillet attached to geometrical ovolo that transitions into a cyma reversa connected to a chamfer with a quarter round bead at the top of the pattern. The moulding knives will come within .020" of the moulder bed plates, therefore milling the lumber smaller than 25/32" thickness is not an viable option.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
