Baseboard 7" - 49
Baseboard 7" - 49

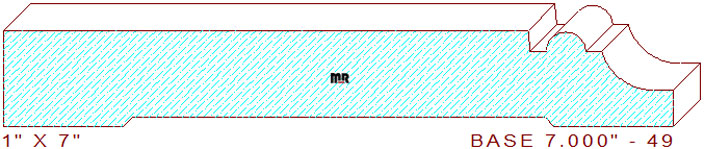

This beautifully bold 7" - 49 base moulding measures 7.000" wide by 1.000" thickness, requiring the use of five-quarter lumber for milling on an industrial molder. The lovely profile is comprised of a 5-1/2" broad flat line with a 7/32" vertical drop in elevation in the center, attached to a 27/64" wide half round bead flanked by identical sized sunk fillets and a 9/16" cove leaving a 3/8" thickness dimension on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$446.00
$446.00
Total:
$892.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$477.00
$477.00
Total:
$954.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$523.50
$523.50
Total:
$1047.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
