Baseboard 7" - 56
Baseboard 7" - 56

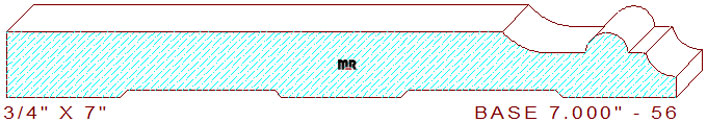

This custom 7" - 56 base moulding measures 7.000" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The attractive profile is composed of a 5-3/16" wide straight flat line in the left center, connected to a 7/8" wide cong'e created from a 5/8" radius cove that joins to a 7/16" wide half round bead, attached to a 3/16" wide horizontal line segment and a 5/16" cove, leaving a 7/32" thickness dimension on the right side of the pattern. We offer a few alternative sizes with similar characteristics as this detail for your review and consideration, baseboard 6.000" - 100 and baseboard 8.375" - 3.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.470
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$446.00
$446.00
Total:
$892.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$477.00
$477.00
Total:
$954.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$523.50
$523.50
Total:
$1047.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
