Baseboard 7" - 59
Baseboard 7" - 59

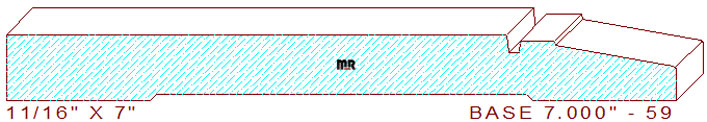

This trendy 7" - 59 base moulding measures 7.000" wide by .687" thickness, enabling the pattern to be machined out of four-quarter lumber. The attractive contemporary profile contains a 5-1/4" broad straight line on the top center. Joined to a 1/8" wide by 3/16" deep groove simulating a saw kerf, attached to a 3/8" wide raised fillet that's 1/8" tall on the left side and a 1/16" high on the right, merged with a 1-17/64" wide ten-degree down-sloping angled line with a 3/64" eased edge on the right side of the design. We offer a similar profile with a tad less detail for your review and consideration, baseboard 7.000" - 9.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.531
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$446.00
$446.00
Total:
$892.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$477.00
$477.00
Total:
$954.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$523.50
$523.50
Total:
$1047.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
