Base Moulding 7-1/4"

Base Moulding 7-1/4"

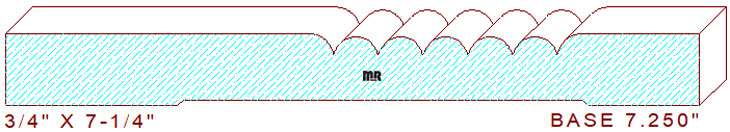

This reeded base moulding 7-1/4" measures 7.250" wide by .750" thickness. The beaded profile is comprised of a 3-13/32" wide straight line with a 1/4" eased edge, connected to five consecutive 15/64" radius half round circles, these are recessed by .031" for sanding purposes, joined to a 1-1/2" wide straight line with a 1/8" radius edge in the upper portion of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Try one of our many panel moldings or base cap profiles to complement this detail, here are just a couple of ideas to get you thinking of some of the endless possibilities, panel moulding 1.500" - 2, panel molding 1.500" - 14, or, base cap 1.625" - 7 and base cap 2.000" - 10. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 7.250" / Depth of Cut = .197" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
