Base Moulding 7-1/4" - 10

Base Moulding 7-1/4" - 10

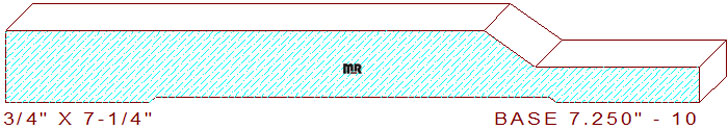

This basic base moulding 7-1/4" - 10 measures 7.250" wide by .750" thickness. The profile is a simple design made up of a 5" wide horizontal line on the main elevation, connected to a 17/32" wide by 3/8" deep chamfer that transitions into a 1-23/32" wide straight line leaving a 3/8" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Utilize one of our many base caps or panel moulding profiles to complement this pattern, simply change the search sizes you want to view to find and create an innovative, one of a kind baseboard moulding design. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 7.250" / Depth of Cut = .375" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
