Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 7-1/4" - 11

Baseboard 7-1/4" - 11

Baseboard 7-1/4" - 11

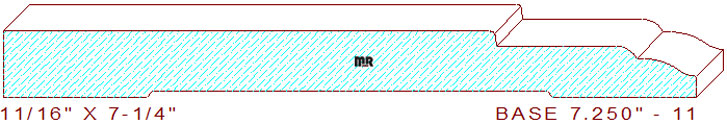

This decorative 7-1/4" - 11 base moulding measures 7.250" wide by .687" thickness. The profile consists of a 5-5/32" wide flat section with a 5/32" vertical step. It's connected to a 1-15/32" flat line with a 1/4" radius edge joined to a two tangent radius ogee on the design's right side.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.467
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$443.00
$443.00
Total:
$886.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$475.00
$475.00
Total:
$950.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$507.00
$507.00
Total:
$1014.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
