Reeded Base Moulding 7-1/4" - 2

Reeded Base Moulding 7-1/4" - 2

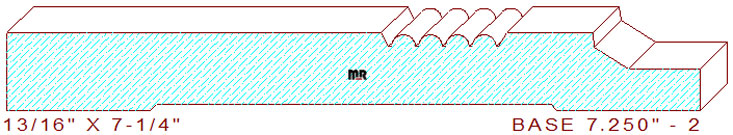

This Reeded Base Moulding 7-1/4" - 2 measures 7.250" wide by .812" thickness, the profile is composed of a 3/4" wide fillet at 7/16" thickness, (some of this area will be covered by the base cap) which transitions into a 3/8" wide chamfer with an attached .148" tall stepped fillet measuring .903" wide, a recessed reeded area measuring 1-5/16" wide that consist of four half round circles separated by a 1/32" wide fillet are purposely recessed below the flat plane by .020" to allow for sanding without interfering with the top of the beads, the remaining portion of the design is flat. The matching base cap for this profile is located under our base caps category, the name is BC 2.500"

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
