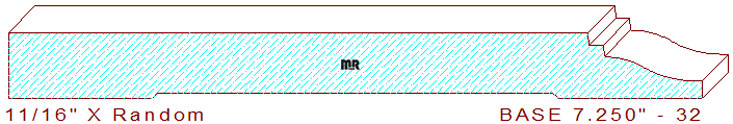

This Cyma Reversa/Ogee Base Moulding 7-1/4" - 32 measures 7.250" wide by .687" thickness with a .500" depth of cut on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The creative stepped profile is composed of a 6-1/16" straight flat line, connected to two 1/8" tall by 1/8" wide stepped fillets, attached to a 7/8" and 1-1/16" tangent arcs, creating a ogee/cyma reversa positioned at the top of the pattern.
Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel moulding cutters in a minimal amount of time. Read our article on the importance of having the profile knife grinder perfectly level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding moulding knives.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
