Basebroad 7-1/4" - 42
Basebroad 7-1/4" - 42

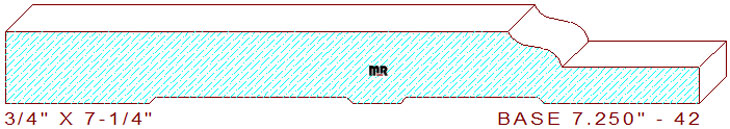

This universal 7-1/4" - 42 base moulding measures 7.250" wide by .750" thickness, allowing the pattern to be milled from four-quarter lumber. The profile is composed of a 5-1/4" broad straight line attached to a 9/16" wide ogee that transitions the thickness to 3/8" with a 1-7/16" broad line segment on the right side of the pattern. The multi-purpose profile has many options available for customization; you may want to review our base caps and panel mould categories for hundreds of beautiful patterns that will complement the top portion of this detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.375
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$459.00
$459.00
Total:
$918.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$491.00
$491.00
Total:
$982.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$539.00
$539.00
Total:
$1078.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
