Baseboard 7-1/4" - 71
Baseboard 7-1/4" - 71

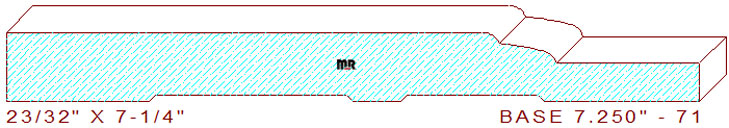

This fashionable 7-1/4" - 71 base moulding measures 7.250" wide by .718" thickness, permitting the use of four-quarter lumber for milling on an industrial moulder. The beautiful profile contains a 5-5/32" wide flat line segment with a 13/64" rolled inside edge on the top center. This section joins a two tangent radius downsloping convex to a 1-1/2" full line segment leaving a 25/64" thickness dimension on the right side of the design. This section of the pattern is perfect for one of our fancy base caps or panel moulds.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.322
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$459.00
$459.00
Total:
$918.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$491.00
$491.00
Total:
$982.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$539.00
$539.00
Total:
$1078.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
