Baseboard 7-3/8" - 11
Baseboard 7-3/8" - 11

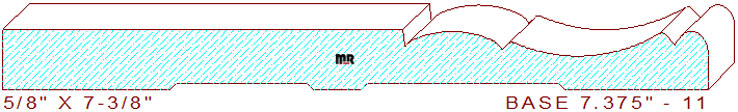

This unique 7-3/8" - 11 base moulding measures 7.375" wide by .625" thickness, requiring a 7-5/8" wide blank of four-quarter lumber for milling on an industrial molder. The custom profile contains a 4-3/16" broad line segment with a 5/32" vertical step on the top left center. The flat line connects to a three-tangent elliptical-shaped convex with a short beveled edge that attaches to a 1-21/32" radius concave semicircle. The remaining portion consists of another downsloping beveled edge joined to a three-tangent radius elliptical-shaped half-circle arc on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.392
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$459.00
$459.00
Total:
$918.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$491.00
$491.00
Total:
$982.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$539.00
$539.00
Total:
$1078.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
