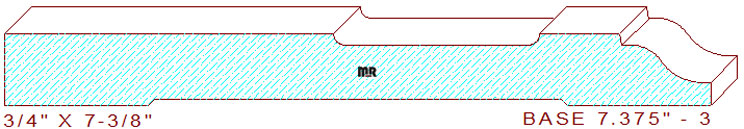

This Striking Base Moulding 7-3/8" - 3 measures 7.375" wide by .750" thickness, the classy profile is comprised of a 3-7/16" wide horizontal line connected to a bidirectional cong'e consisting of two 1/8" radiuses which transitions into a 13/16" wide horizontal fillet with an ogee positioned at the top of the pattern.
The professional cad produced dxf file contains two high precision template drawings to create moulder knives for this specific detail, one for a five spindle moulder with a single top horizontal spindle, and the other for a moulder with two top horizontal spindles.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
