Baseboard 7-7/16" - 2
Baseboard 7-7/16" - 2

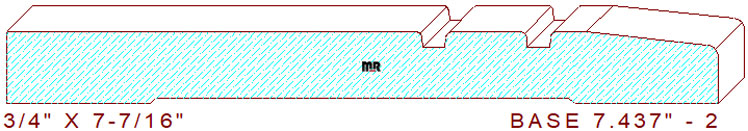

This contemporary 7-7/16" - 2 base moulding measures 7.437" wide by .750" thickness, allowing the pattern to be cut from four-quarter lumber. The beautiful modern profile is composed of a 4-11/32" wide flat line on the top left, connected to two 1/4" wide by 5/32" deep dado's with 1/16" rounded edges divided by a 27/32" wide raised fillet also with 1/16" eased edges in the center, these small 1/16" radiuses will minimize any chance of chipping the wood during the milling process, as well as aid in the finishing process, joined to a 3/8" wide flat line that transitions into a 6.09-degree angled line with a 1/8" rounded edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.437
Depth of Cut: 0.415
Bottom Cutter Head
Width: 7.437
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$468.72
$468.72
Total:
$937.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$501.47
$501.47
Total:
$1002.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$550.59
$550.59
Total:
$1101.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
