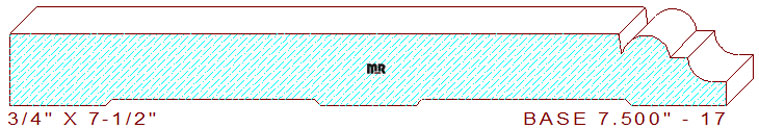

This Base Moulding 7-1/2" - 17 measures 7.500" wide by .750" thickness with a .500" depth of cut on the top horizontal profile cutters. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.
The small 1-1/8" wide profile portion is comprised of a recessed 1/2" wide half round circle, connected to a 3/16" wide horizontal line, attached to a 1/4" radius congee (cove tangent off of a straight line) at the top of the pattern.
Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the width search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
