Baseboard7-1/2" - 28
Baseboard7-1/2" - 28

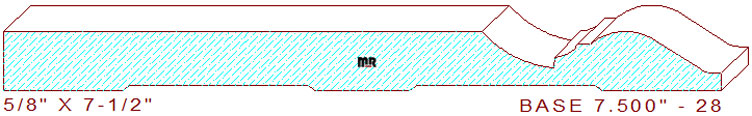

This elegant 7-1/2" - 28 base moulding measures 7.500" width by .625" thickness enabling the use of four quarter lumber for machining on an industrial-grade molder. The distinguished profile contains a five-inch wide flat line segment on the top center. The horizontal line joins a 1-1/8" cove with a 7/64" vertical upstep merged to a 5/16" cavetto and a 1/8" broad fillet in the center. The remaining portion of the pattern consists of a thumbnail shaped convex arc with a 1/4" concave semicircle tangent to a small horizontal fillet, leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.500
Depth of Cut: 0.437
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$472.00
$472.00
Total:
$944.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$505.00
$505.00
Total:
$1010.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$554.50
$554.50
Total:
$1109.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
