Baseboard 7-1/2" - 35
Baseboard 7-1/2" - 35

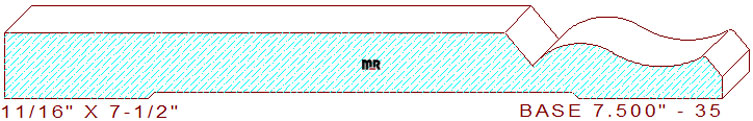

This fashionable 7-1/2" - 35 base moulding measure 7.500 widths by .687" thickness, allowing the use of four-quarter lumber for milling on industrial machinery. The stylish profile contains a 5-9/32" wide horizontal fillet joined to an 11/32" deep, fifty-degree beveled inside edge on the top center. The angled line connects to a two tangent radius s-shaped curvature with a 9/32" broad splay-faced chamfered edge on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.500
Depth of Cut: 0.550
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$472.00
$472.00
Total:
$944.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$505.00
$505.00
Total:
$1010.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$554.50
$554.50
Total:
$1109.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
