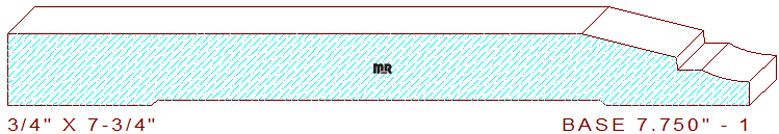

This Base Moulding 7-3/4" - 1 measures 7.750" wide by .750" thickness, the profile portion dimension is 1.750" wide and is comprised of a shallow cavetto, 1/4" wide fillet, and a 1" wide chamfer, the remaining 6.000" of the pattern is flat. There are two template designs within this downloadable dxf file, one for a five spindle moulder and the other for a six spindle moulder with two top cutter heads for milling just the profile portion of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
