Baseboard 7-3/4" - 2
Baseboard 7-3/4" - 2

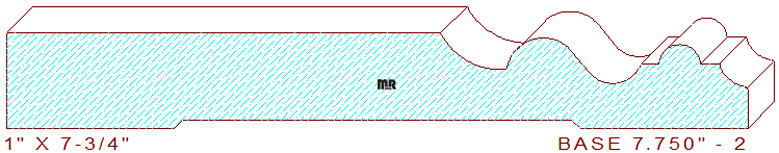

This traditional 7-3/4" - 2 base moulding measures 7.750" wide by 1.000" thick. The custom design is comprised of a 4-17/32" broad straight line connected to an 11/16" radius cavetto that transitions into a cyma reversa joined with a 7/32" radius half-circle flanked by 3/16" wide fillets with a 5/16" radius cove on the design's right edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.750
Depth of Cut: 0.750
Bottom Cutter Head
Width: 7.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$519.00
$485.00
Total:
$1004.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$553.00
$519.00
Total:
$1072.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$604.00
$570.00
Total:
$1174.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
