Baseboard 7-3/4" - 5
Baseboard 7-3/4" - 5

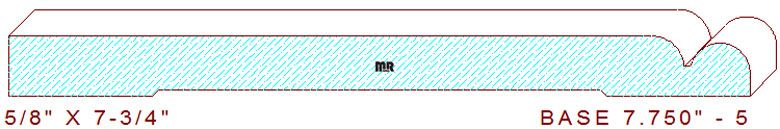

This single bead 7-3/4" - 5 base moulding measures 7.750" wide by .625" thickness. The profile section is made up of a half-round bead attached to a miniature 1/16" fillet section that transitions into about an 11/32" radius onto the flat area on top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
