Baseboard 7-7/8" - 6
Baseboard 7-7/8" - 6

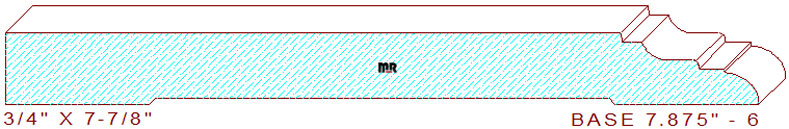

This large 7-7/8" - 6 custom base moulding measures 7.875" wide by .750" thickness. The designer profile is comprised of a 6-7/16" wide straight flat line with a 3/32" vertical step on the top center. It's connected to a 7/32" wide flat section merged into a 9/32" radius cong'e, joined to another small straight line and vertical step with a two tangent radius quarter circle at the top of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.875
Depth of Cut: 0.750
Bottom Cutter Head
Width: 7.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$526.00
$491.50
Total:
$1017.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$560.50
$526.00
Total:
$1086.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$612.25
$577.75
Total:
$1190.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
