Baseboard 7-7/8" - 7
Baseboard 7-7/8" - 7

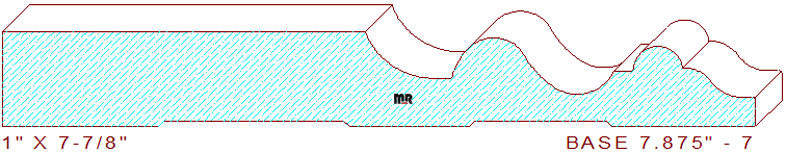

This elegant 7-7/8" - 7 base moulding measures 7.875" width by 1.000" thickness, requiring an 8-1/8" wide blank of five-quarter lumber for milling on an industrial moulder. The intriguing profile contains a 3-25/32" broad flat line connected to a 3/4" radius cavetto on the top left. The concave arc attaches to a graceful four-tangent radius s-shaped curvature, merged with a 3/16" wide horizontal line segment in the center. The remaining portion of the pattern retains a 33/64" full half-round bead joined to a two-tangent radius ogee with a 3/64" eased edge, leaving a 5/16" thickness dimension on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.875
Depth of Cut: 0.884
Bottom Cutter Head
Width: 7.875
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$526.00
$491.50
Total:
$1017.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$560.50
$526.00
Total:
$1086.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$612.25
$577.75
Total:
$1190.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
